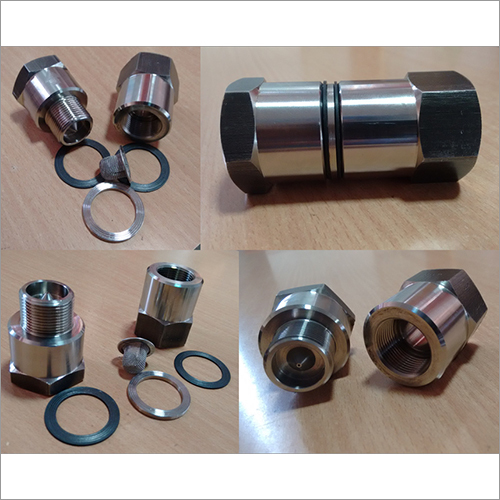

Steam Saver Trap

Steam Saver Trap
Steam Saver Trap
Product Code : ST 25
Brand Name : CBS TECHNOLOGIES
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash in Advance (CID), Others, Telegraphic Transfer (T/T), Cheque
  • Delivery Time
  • Months
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, South America, Eastern Europe, Western Europe, Middle East, Africa, North America
  • Main Domestic Market
  • All India
Product Description

Steam Trap - Saver

A steam trap is a device used to discharge condensate and non-condensable gases with a negligible consumption or loss of live steam.

Why steam trap?
Their goal is to ‘purify’ the steam of excess air and water (condensate) to :

Improve efficiency:
Excess water or air in the system prevents it from reaching operating temperature quickly during start-up.

Protect system:
Inadequate steam trapping can lead to water hammer, corrosion, leakage, and high maintenance costs.

Provide maximum heat transfer:
‘Dry’ steam has best heat transfer properties in equipment like a heat exchanger.

TECHNOLOGY BEHIND STEAM TRAP/SAVER

The nozzle system employs continuous flow venture nozzle technology to completely remove condensate as it forms.

The Nozzle System is a continuous flow Venturi Nozzle steam trapping device. Venturi Nozzle System has no moving parts to wear out and fail open. The Trap work by using the difference in density between steam and condensate. A wire mesh is used to prevent the dust particles reaching the nozzle and choke it.

WORKING

The Trap work by using the difference in density between steam and condensate.The slow moving condensate squeezes out low density steam as it approaches the nozzle. The high density, slow moving condensate is then preferentially discharged through the nozzle trapping the low density steam behind.

DISTINCTIVE ADVANTAGES OF STEAM TRAP/SAVER

  • Can be used for high-pressure steam applications
  • Continuous discharge
  • Easy to install
  • No moving parts
  • Easy to maintain
  • Low initial cost
  • Low operating cost
  • Consumable free for many years
  • Resistant to freeze damage
  • Life long maintenance free
  • Can be mounted in several positions
  • Compact size
  • Resistant to damage by water hammer and thermal shock
  •

DIFFERENCE B/W VENTURI NOZZLE TYPE AND THERMODYNAMIC TYPE STEAM TRAP
